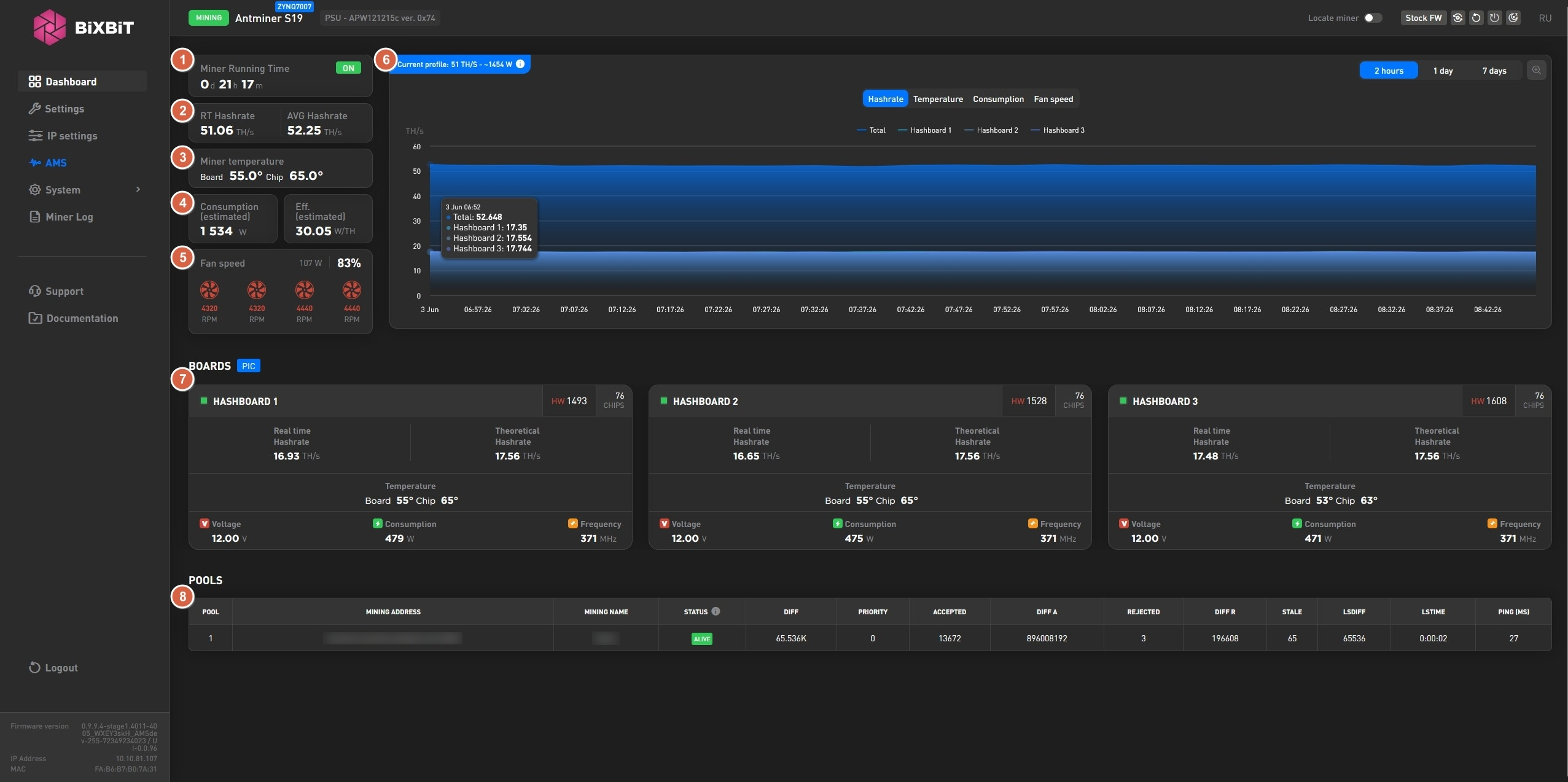

Dashboard Section

This section contains general information about the current operation of the device:

1. Miner Running Time — the device uptime since the last reboot.
2. RT Hashrate — the current hashrate of the device; AVG Hashrate — the average hashrate of the device over the last 15 minutes.
3. Miner Temperature — temperatures of the hottest sensors on the boards (Board) and on the chips (Chip).
4. Consumption — the current power consumption of the device; Eff. — the current energy efficiency of the device. The "estimated" note means that consumption and energy efficiency are calculated values.
5. Fan speed — fan rotation speed. This block also shows fan power consumption and the current percentage of maximum speed.
6. Current device profile — shows the current device profile. The charts in this widget display hashrate, temperatures, consumption, and fan speed over 2 hours, 1 day, and 1 week.
7. Boards — a widget with information for each hashboard of the device. Displays the number of hardware errors, current and ideal hashrate, temperatures of the hottest board and chip sensors, board voltage, consumption, and chip frequency.
8. Pools — pool statistics. Displays the current mining pools, their status, and statistics for each.
